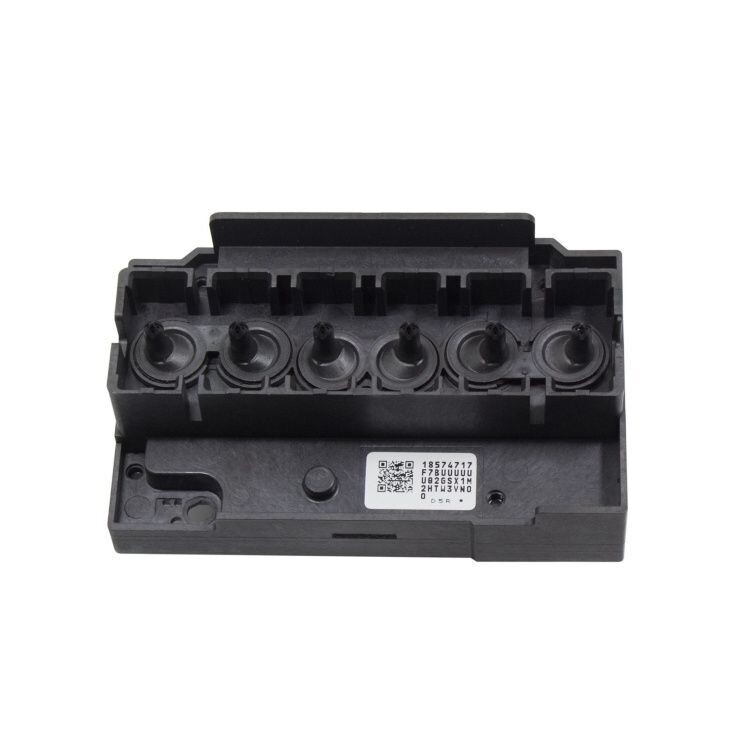

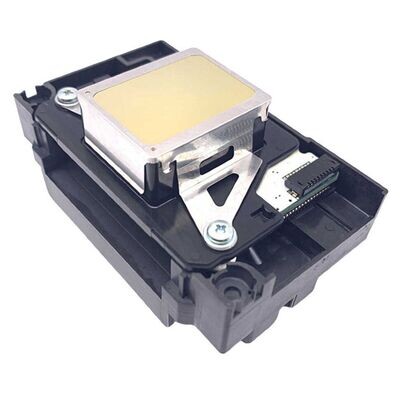

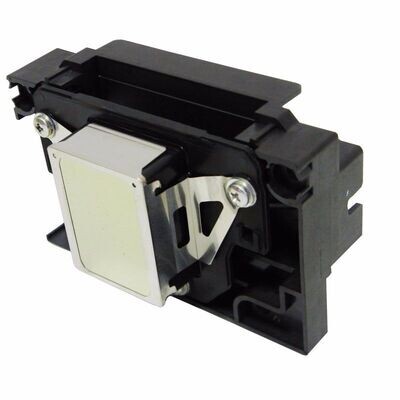

Epson L800 Printhead

Epson L800/L805 printhead is used by various chinese UV, DTF and sublimation printers. Part number F180040.

Product Specifications

• Technology : Micro-Piezo
• Type: UV printer, DTF printer, water base, sublimation printer
• Resolution: high resolution 1440 dpi
• Dimensions : 84.9 x 57.2 x 42.6 mm
• Weight : 180g
• Number of nozzle : 1080
• Nozzle pitch/nozzle row : 1/180 inch
• Nozzle rows : 6 rows
• Nozzle resolution : 180 npi /row 360 npi/6 rows
• Jetting Frequency : 46 kHz (Single mode); 11.52 kHz (Multi mode)
• Droplet volumes : 4.5, 9，20，40 pl (Multi mode)
• Viscosity range : 3-5 mPa･s
• Positioning Mechanism : Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
