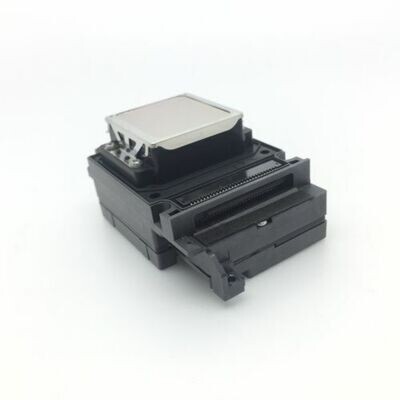

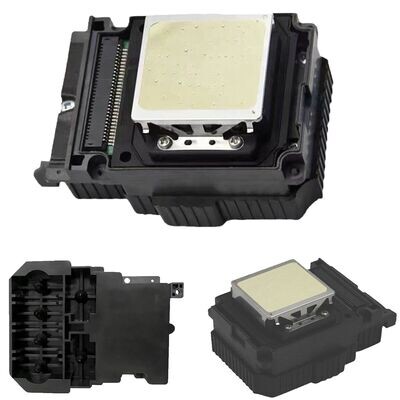

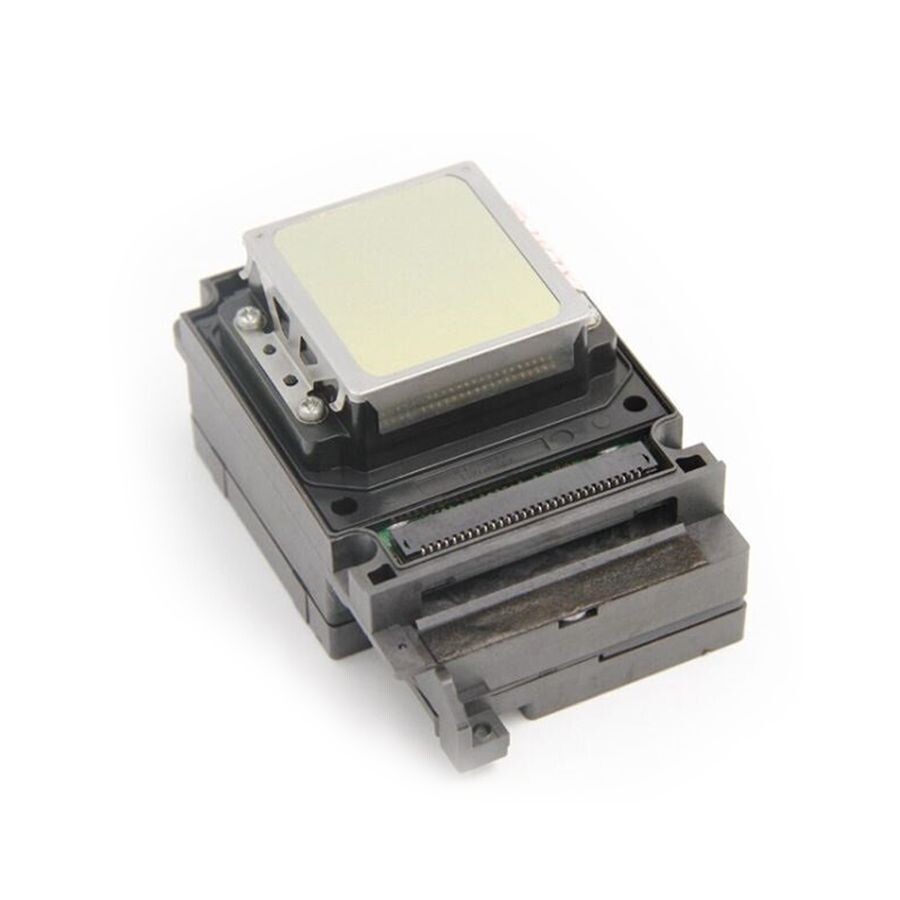

Epson tx800 (DX8) Prinhead

Epson DX8 printhead is used by various chinese wide-format UV, eco-solvent, DTF and sublimation printers. Part number F192040/DX8.

! All our printheads are tested before sell. There is a sheet with 100% full nozzle test inside the package.

! Warranty: due to the nature of UV and DTF ink, we cannot accept returns, exchanges or refunds once the printhead has been installed at the third -party not original Epson printer. All sales are final.

Product Specifications

• Technology : Micro-Piezo
• Type: eco solvent printer. UV printer, water base, sublimation printer
• Resolution: high resolution 1440 dpi
• Dimensions : 84.9 x 57.2 x 42.6 mm
• Weight : 60g
• Number of nozzle : 1080
• Nozzle pitch/nozzle row : 1/180 inch
• Nozzle rows : 6 rows
• Nozzle resolution : 180 npi /row 360 npi/2 rows
• Jetting Frequency : 46 kHz (Single mode); 11.52 kHz (Multi mode)
• Droplet volumes : 4.5, 9，20，40 pl (Multi mode)
• Viscosity range : 3-5 mPa･s
• Positioning Mechanism : Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : China
