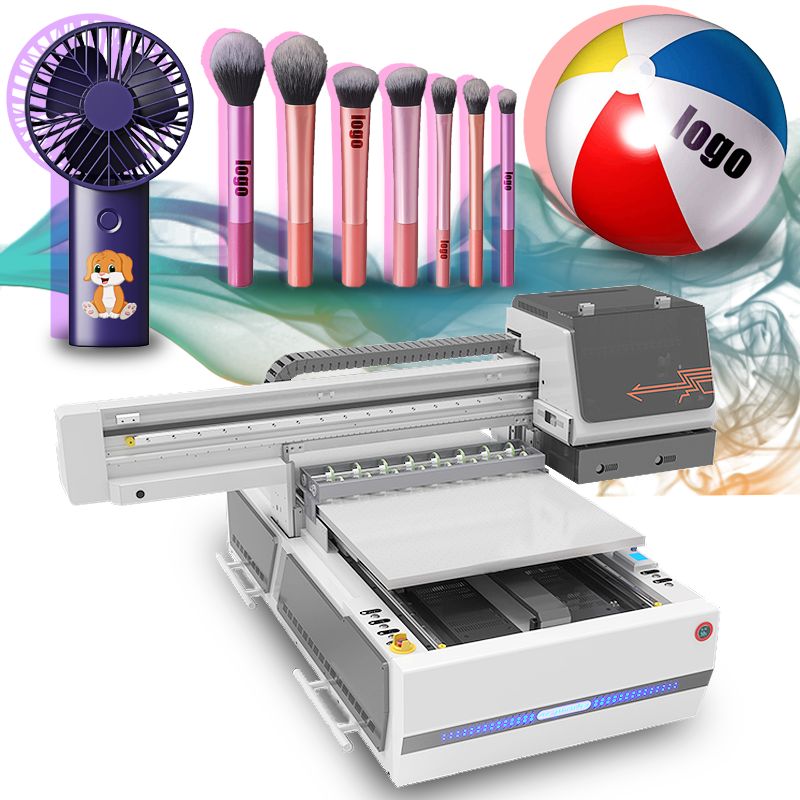

UV Printer 6090 Epson XP600 head

Store / UV Printers
AED25,000.00
Pre-order
Out of stock, available for pre-order
Product Details

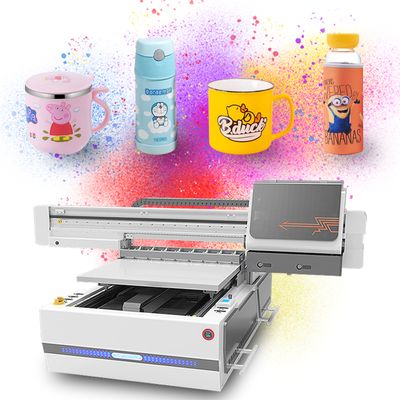

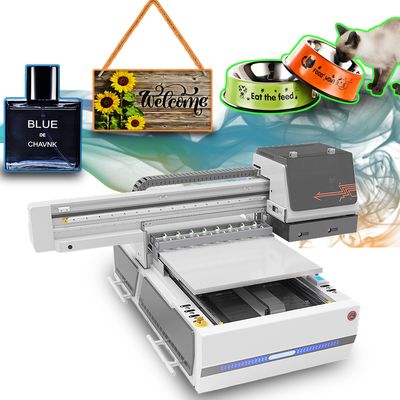

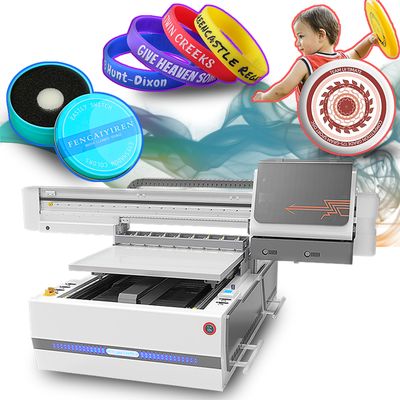

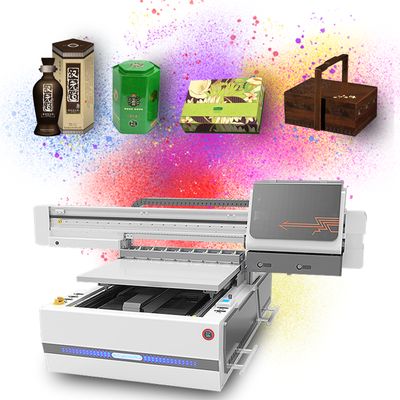

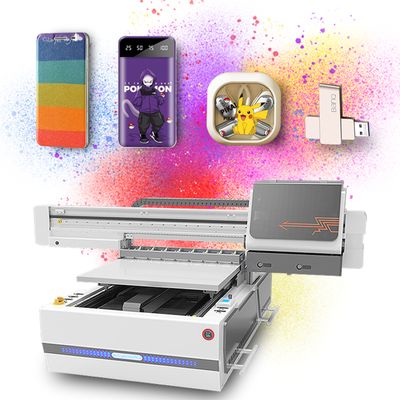

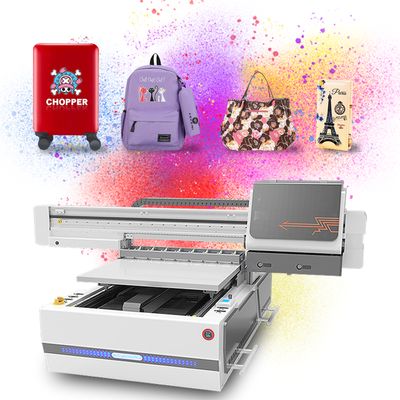

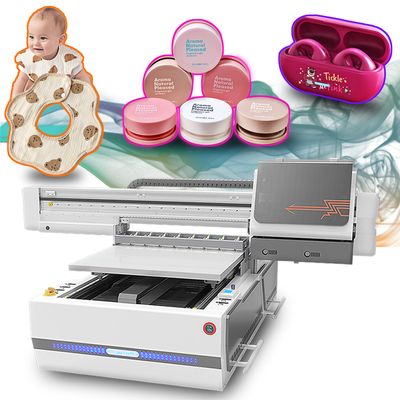

UV Printer for printing on variety of materials: glass , phone case , acrylic board , id card , wood,covers, PVC, leather etc

New the latest negative pressure system ensures the stability of printing, and the almost complete absence of consumables, such as: parking caps, ink pumps, vipers

Description:

  • 3pcs original Epson xp600 printhead
  • printing size 60x90cm
  • vacuum table with fan
  • rotary device (only color + white)
  • negative pressure system with sub-tank heat controller
  • roll-ball screw Y axis
  • servo-motor X axis
  • ready ICC profiles
  • maximum Z axis 20cm
  • one-time printing color+white+varnish
  • 3d printing + Braile

Technical parameters:

Model

FS-6090-xp600

Printheads

Original 3pcs Epson xp600

Printer Size

140*130*80cm

Printer Resolution

 2880*720DPI

Max Printing Size

60*90 cm

Maximum printing height

20cm

Printheads scheme

One color printhead: KYCCMM

One white printhead: WWWWWW

One varnish printhead: VVVVVVV
Printing speed average about 1.5-2.5 sqm/hour

Voltage

220v

Language

English

Operating System

Windows 10/11

Software

 FlexiSign Photoprint 19

Integrated Design

 Integrated Design with uv system and negative pressure ink system

Platform Material

 High quality aluminium alloy + special paint

Servo motor

 High quality electric motor, ensure the print accuracy and stable

Printing Direction

 Uni and Bi-direction

Supper Cooling System

 Air cooling , long life of uv

UV Led Power

 150/200W adjustable

Life Of UV Lamp

 more than 2year

Work Environment

 Work Environment

ink Support

 UV ink (Taiwan Dongzhou)

Ink Color support

 CMYKlclm+W+V (extra two channels for varnish/spot uv ink)

Firmness/stability/

UV-proof/WInk Supportater-proof/scratch-proof

Ink Level

 Environment friendly/non-mercury/non-ozone

Print Feature

 3D embossed effect and varnish

Life of Print Head

 6 to 10 months usually

Package included

 Ethernet cable/power cable/manual/ink adding tools

Shipping Type

 Dubai warehouse
Weight 300kilo
Dimentions 1,6х1,5x1m
